One letter apart: MBR and MBBR — what’s the real difference? Read this article and you’ll understand

Anyone who has worked in wastewater treatment for a while has certainly heard the two names: MBR and MBBR. Many newcomers feel confused: only one letter apart, both sound like “advanced processes”, but what’s the actual difference? When I first encountered MBBR around 2016, I thought it was just an upgraded version of MBR.

1. First, understand the core of wastewater treatment

Most wastewater treatment essentially does two things:

• Step 1: microbes consume the pollutants
• Step 2: separate microbes from water

biological treatment sludge-water separation

The conventional activated sludge process is simple: aeration tank → secondary clarifier. MBR and MBBR are enhancements in these two steps.

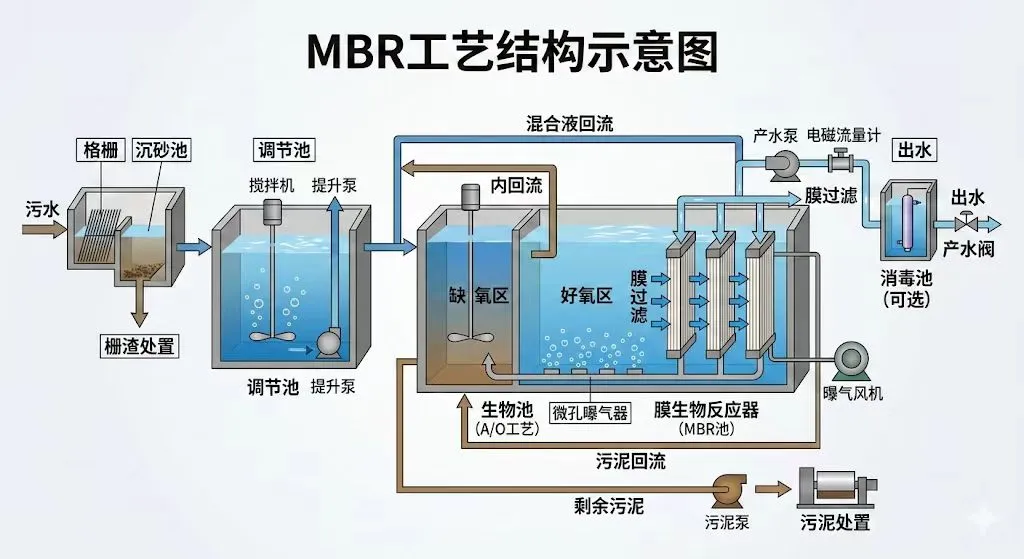

2. MBR: membrane replaces the secondary clarifier

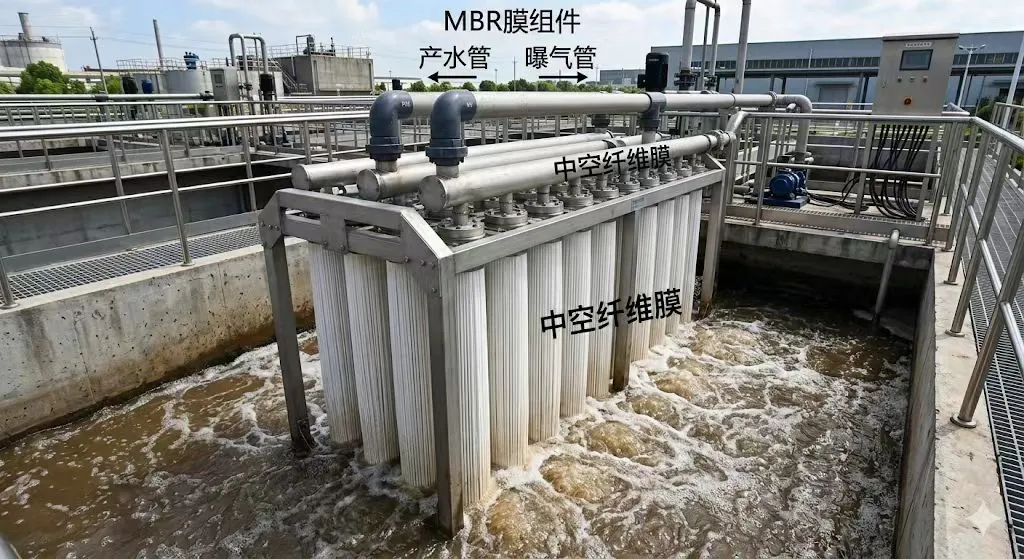

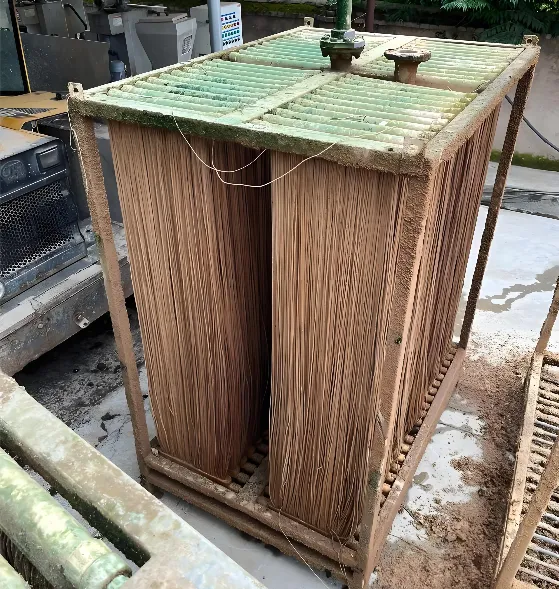

MBR stands for Membrane Bioreactor . The biggest change: replace the secondary clarifier with membrane filtration .

• Sludge is completely retained
• Suspended solids nearly zero
• Very clear effluent – many MBR effluents can be reused as reclaimed water

MBR operation feature: extremely high sludge concentration.

Conventional activated sludge: MLSS ~2000–4000 mg/L.

MBR: MLSS usually 6000–12000 mg/L → more microbes, higher efficiency, smaller tank volume.

3. MBBR: more “living area” for microbes

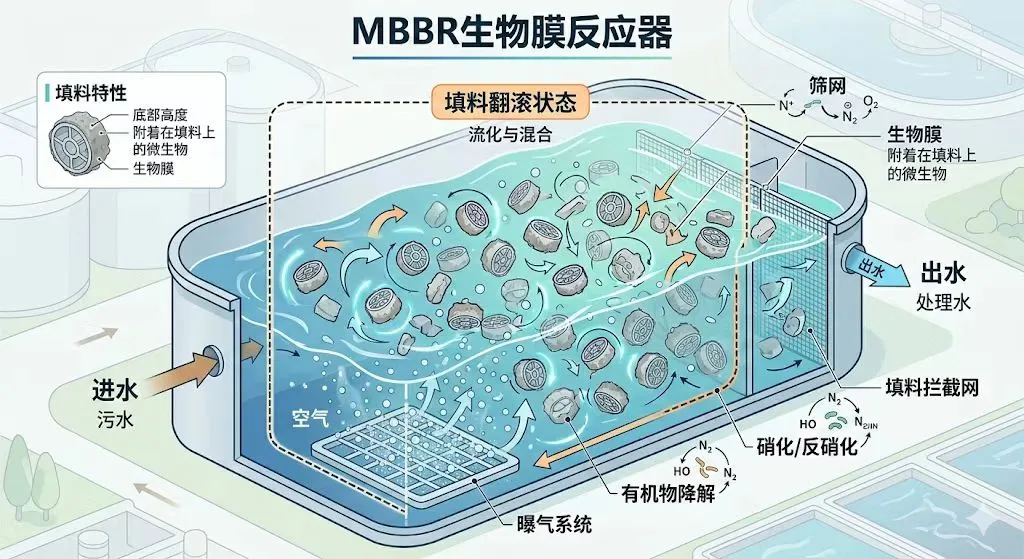

MBBR stands for Moving Bed Biofilm Reactor . This approach does not change sludge-water separation; instead, it increases the microbial population .

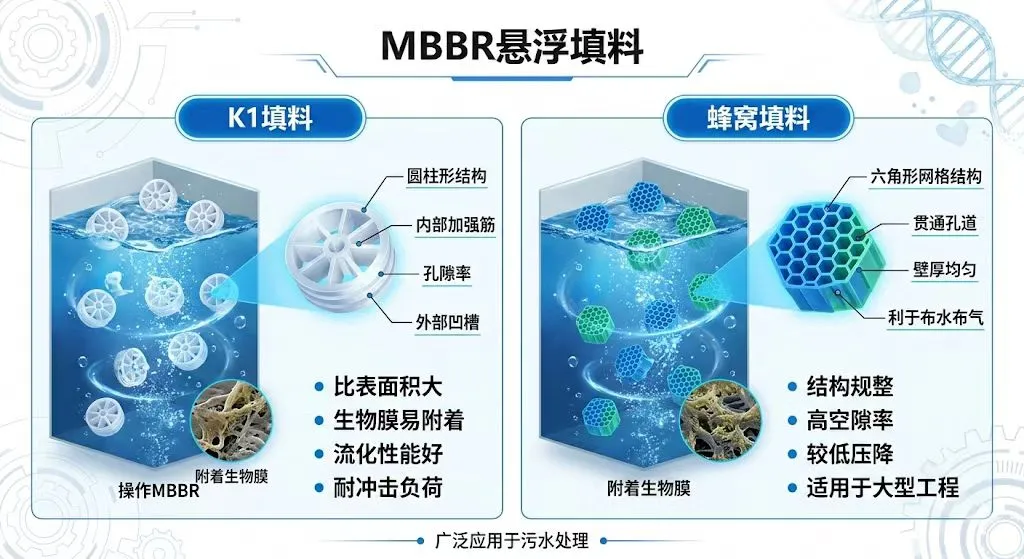

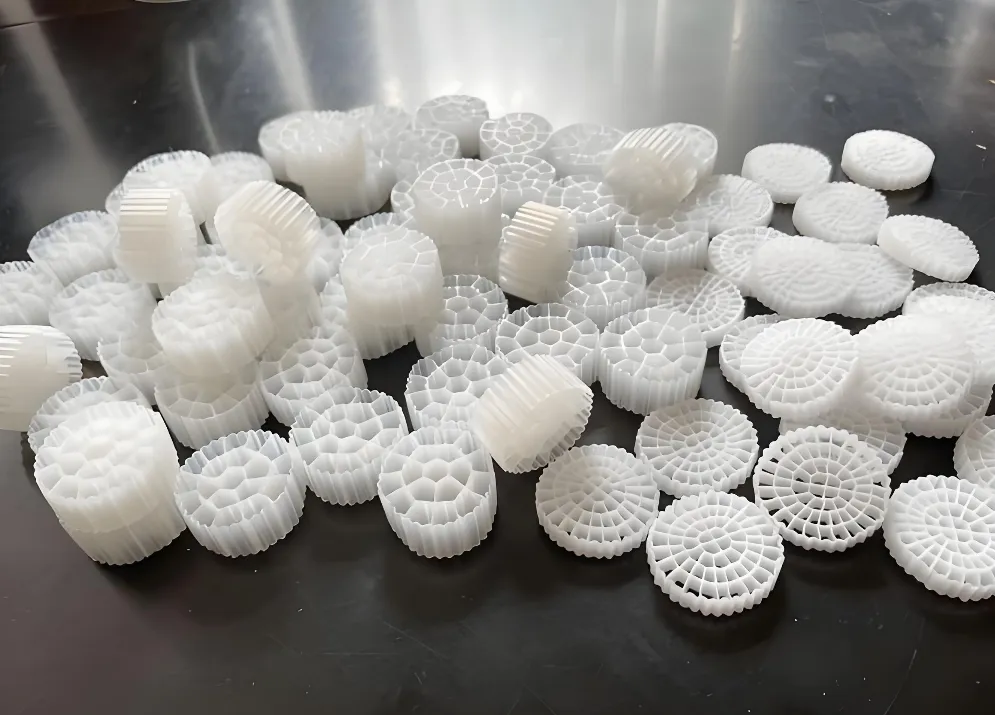

Think of it this way: Conventional activated sludge – microbes are “suspended in water”. MBBR has two parts: suspended sludge biofilm on carriers → total biomass increases significantly.

Why MBBR is shock-resistant: biofilm on carriers is not easily washed out. When water quality fluctuates, the attached biofilm stabilises the system. That’s why many industrial projects prefer MBBR.

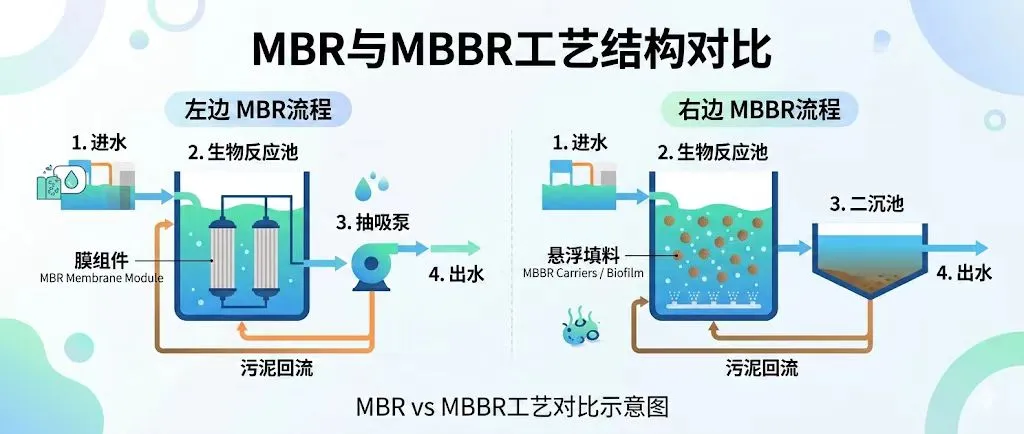

4. MBR vs MBBR: how to choose?

Focus on three questions:

1. Effluent requirements – if reuse / high standard / surface water standards → MBR is better (membrane removes almost all SS).
2. Footprint – if space is tight → MBR has an advantage (no clarifier).
3. Investment & operation – if stability, cost, and simple management are priorities → MBBR is often more suitable, especially for upgrading old plants.

5. More projects now use a “combined approach”

In some projects, the two are combined: MBBR MBR – carriers are added to the MBR bioreactor. Benefits: higher biomass and reduced membrane fouling. Many high-standard WWTPs adopt this concept.

6. Final summary
